Our Services - Assembly Capabilities
This exploded view presents the internal components of our lever operated butterfly valve, highlighting the precision and quality of our assembly process. The valve consists of a stainless steel body, butterfly disc, stem, seat, seals, fastening elements, and a manual lever mechanism for quarter-turn operation.
Each component is carefully assembled and inspected to ensure proper alignment, reliable sealing, and smooth operation. As part of our capabilities, we provide complete valve assembly services, delivering fully assembled, ready-to-install solutions for oil & gas, process, and industrial applications.
This exploded view illustrates the internal components of our butterfly valve and demonstrates our in-house assembly capabilities. The valve includes precision-machined parts such as the stainless steel body, disc, stem, seat, seals, and fastening elements.
All components are assembled, aligned, and inspected by our team to ensure reliable performance, proper sealing, and compliance with industrial service requirements. We provide complete valve assembly as a service, delivering fully assembled, ready-to-install solutions tailored to project needs.

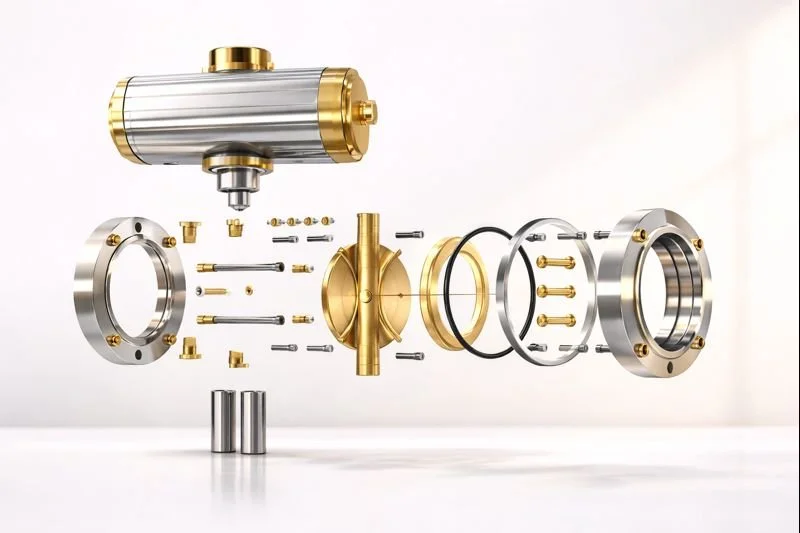

This exploded view illustrates the internal components of our pneumatic actuated butterfly valve, highlighting the integration between the valve body and the pneumatic actuator. The assembly includes the stainless steel valve body, butterfly disc, stem, seat, seals, fastening elements, and the pneumatic actuator mounting interface.
All components are assembled and aligned in-house to ensure reliable sealing, accurate actuation, and consistent performance under industrial operating conditions. As part of our capabilities, we provide complete valve and actuator assembly services, including actuator mounting, alignment, functional testing, and final inspection, delivering fully assembled, ready-to-install solutions for oil & gas and process applications.
